Raised Plastic Barrel Planter Tutorial

Raised Plastic Barrel Planter Tutorial

Tutorial to build a raised plastic barrel planter in your garden.

Materials needed to build a plastic barrel planter

(3) 55 gallon juice drum
2×4 pressure treated lumber

Tools:

  • Hand Saw
  • Measuring Tape
  • Clamps
  • Straight Edge (square)
  • Wood Glue
  • Hammer
  • Chisel
  • Screws
  • Power Drill/Driver

Build The Assemblies

Raised Plastic Barrel Planter Tutorial
Raised Plastic Barrel Planter Tutorial
Raised Plastic Barrel Planter Tutorial

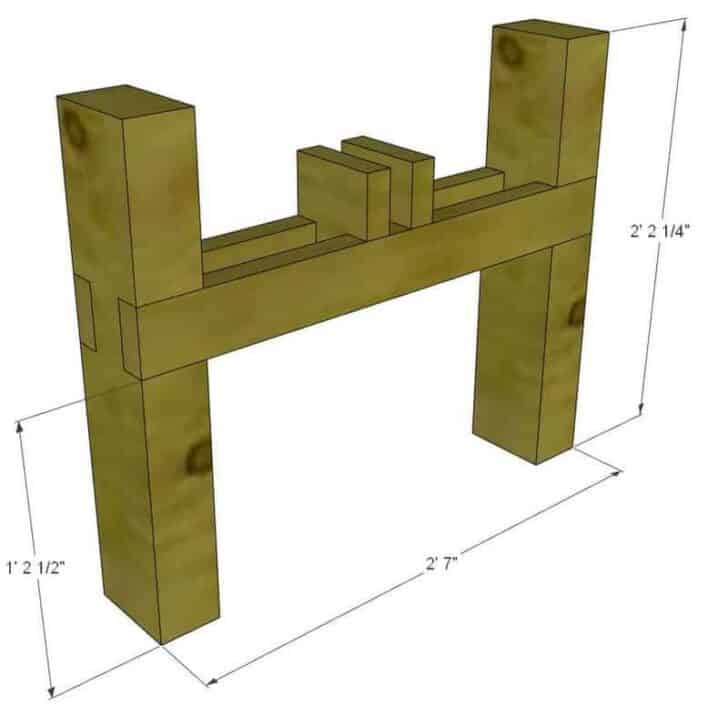

You’ll need four assemblies for three drums. Begin by building the four support assemblies that will connect the 2×4 stringers. For simplicity, make them identical and symmetrical.

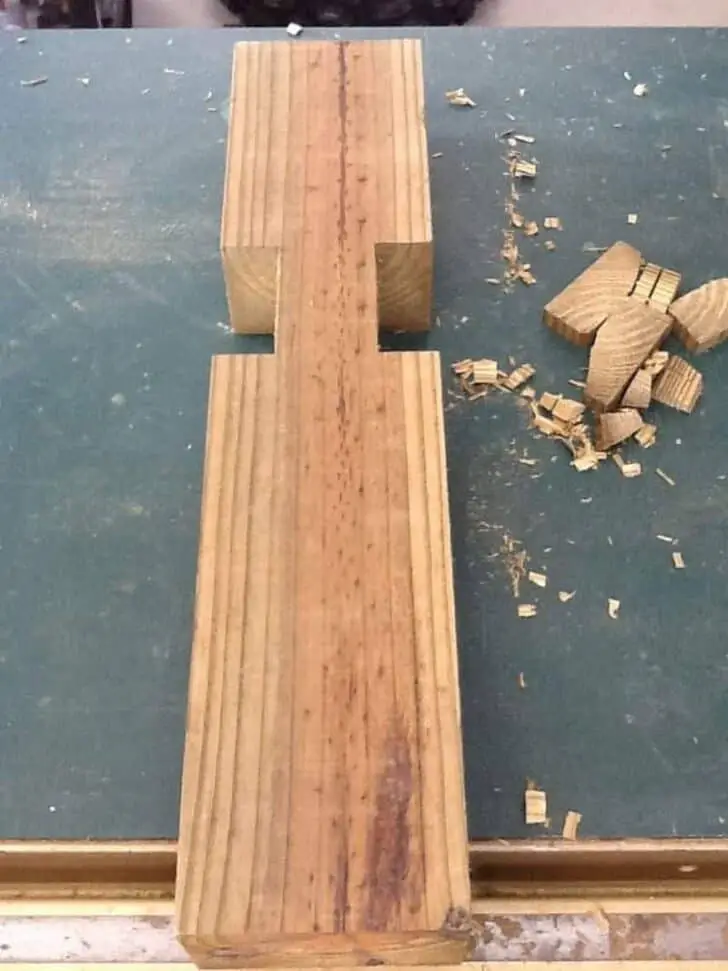

The legs are made from 4×6 pressure treated (PT) lumber, with the height of 26-1/4″. The cross members connecting each leg are made from 2×4 PT and are joined together using dadoes cut.

Connect The Assemblies

Raised Plastic Barrel Planter Tutorial
Raised Plastic Barrel Planter Tutorial

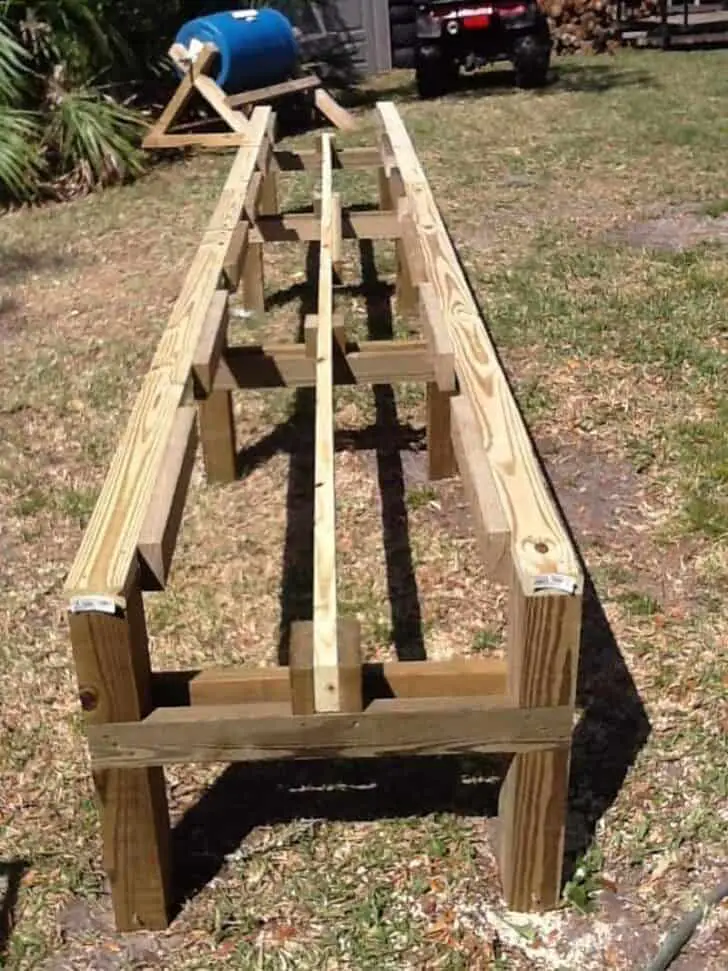

After building the assemblies we are now to connect them together. Stake one of the four assemblies to the ground to prevent it from moving. Then measure the exact location where the next assembly should be attached. Stake the second assembly in the location determined earlier. You can then lay a 2×4 on top of the legs and fasten them using screw. After that side is done proceed to the other side. Attach a 2×4 on the assemblies’ cross member and screw into place.

Attach Spacers

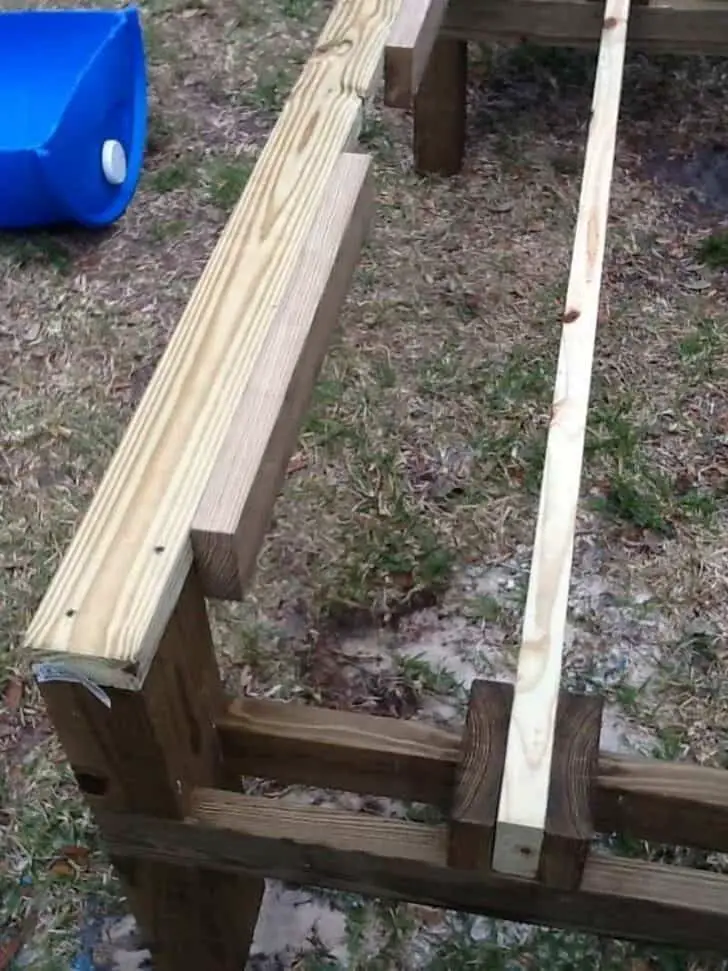

Using screws attach 2×4’s with the length of 2′ to the inner side of the 2×4’s connecting the legs of assemblies. These will serve as spacers giving the drums a snug fit and preventing them from rolling.

Cut And Install Drums

Raised Plastic Barrel Planter Tutorial
Raised Plastic Barrel Planter Tutorial

Carefully draw lines on the drums where the cut will be made. Cut the drum using a circular saw with carbide tipped blade. Once the drums are cut in half, wash them and let dry. Drill holes for drainage. Lastly, install the drums and fill with soil. You can use the 2x4s that connects the legs of the assemblies to add a trellis.


Source: RushFan on Instructables
